PRODUCT DESCRIPTION

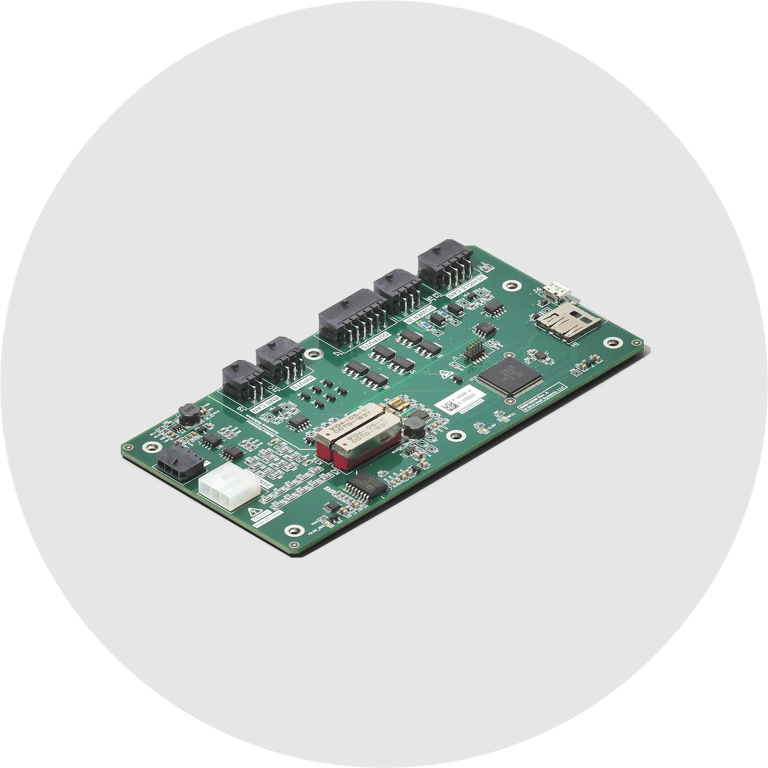

ATI Tech Group modular BMS Battery Management System consists of one BMS Master Module and an application-specific number of BMS Monitor Modules.

FEATURES

• Scalable from 12 to 256 Series Cells

• Temperature Sensor for Each Cell Group

• Supports up to 1000V Systems

• Low Steady State Cell Voltage Measurement Error (<2.0 mV)

• Individual Cell Group Balancing Resistors

• Externally Powered for Low Quiescent Battery Current

• High Current Shunt Monitor Circuit for Accurate Pack Current Sensing

• Pack Level Voltage Monitoring

• Integrated Isolation Fault Monitor Circuit
