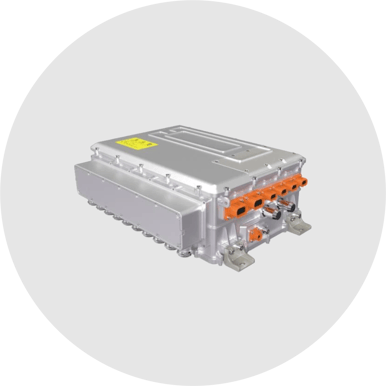

PRODUCT DESCRIPTION

DC-DC converter products are widely used in various fields of technology, among which new energy vehicles such as electric vehicles and hybrid vehicles are one of its main application fields. A reliable DC-DC converter provides DC regulation to prevent failures in the application system.

ADVANTAGES

ATI Tech Group EV DC/DC converters have Fan Cooled and Liquid Cooled type.-cooling, integrable and bus-specific products, and the product output power range covers 0.3KW-6KW. Cooling method is by aluminum. Moreover it can support on-line upgrade and fault diagnosis, full digital software design, redundant protection function design.

FEATURES

• Functional： Full Digital Software Design

• Working Temp.: -40℃~85℃

• Rated Out Power : 6kW

• Input Voltage Range: 400-750Vdc

• Rated Output Voltage: 27.5vDC

• Rated Output Current: 218A

• Low Input Voltage: 9-32Vdc

• Efficiency: ≥95%

• Output Voltage Ripple.: ≤500mVPK-PK Output Voltage Accuracy : ±1%

• Voltage Wake-up : CAN/KL15

• CAN Communication: CAN-BUS

• Static Current: ≤ 2mA

• EMS Standard: GB/T18655-2010

• Dim: 326*211*83mm
